Sorting Units

Schematic Drum Sieving Machine
Schematic Drum Sieving Machine

Rotary Sieving Machines/Sorting by Size

To sort bulk goods for size, sieving machines are often used. Unfortunately, the pores of these sieves are easily obstructed or glued. Therefore, BRACE developed rotating drum sieving machines. The pores of these sieves are kept clean by a brush that is placed outside the sieving drum. Moreover, the rotating drum sieving machine can sort large amounts of bulk goods with very little consumption of energy. The rotating drum sieve machine works in principle like this: The bulk good is delivered to the first sieving drum via a vibrating channel. The particles whose diameters are smaller than the width of the mesh size can pass those and are separated from the rest. They fall into a second sieving drum which mesh size is bigger than those of the first sieve and so on. The particles that are larger than the mesh size of the last sieve are collected separately as oversized granules. Usually, two up to four different sieving drums are used for the fractionation of bulk goods. The use of a sieving drum is recommended for the sorting of volumes from 30-50 litres per hour upwards. For the sorting of very sensitive goods or of goods that are easily charged when handled, BRACE offers drum sieving machines that are optimized for these purposes and can even sort wet goods.

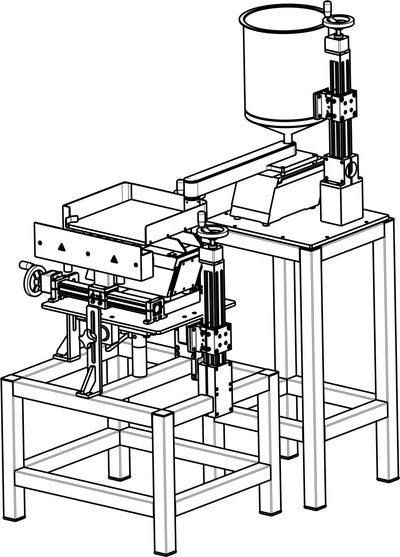

Shape Sorting Table
Shape Sorting Table

Vibrational Sorting Tables/Sorting according to sphericity

Apart from sorting according to size it can be necessary to sort particles according to sphericity. A very elegant way to separate perfectly round particles from others is the sorting via a BRACE vibrational sorting table. The BRACE sorting tables are e.g. used for the sorting of soldering spheres which are needed for ball grid arrays and for the sorting of spheres that are needed for photovoltaic (silicon, thin film solar cells, etc.) or nuclear fuel applications. Since BRACE sorting tables are relatively small it is possible to install many of them side by side which can either work in parallel or sort different materials at the same time.
